N9000 Series Ultra-high Integration Dual-quadrant Modular Battery Simulator

Data Sheet Download

User Manual Download

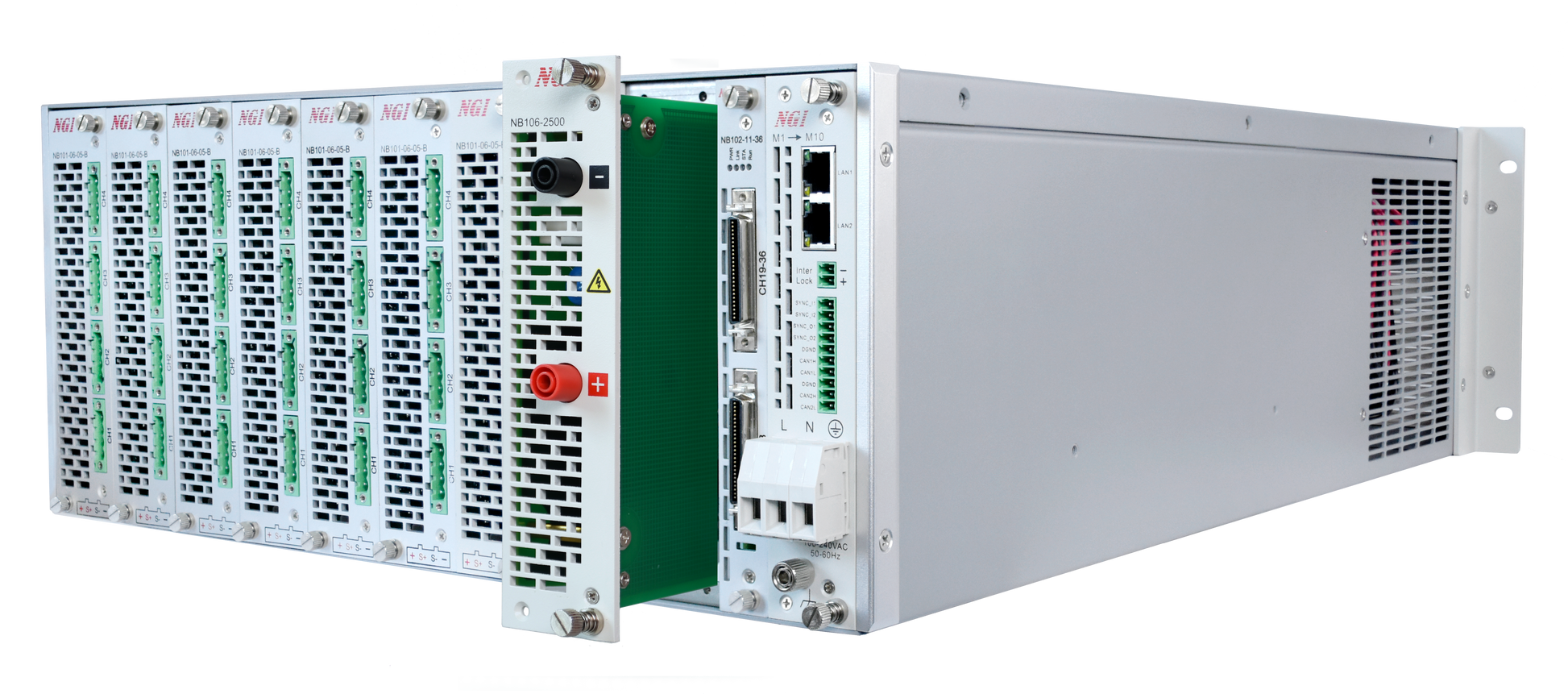

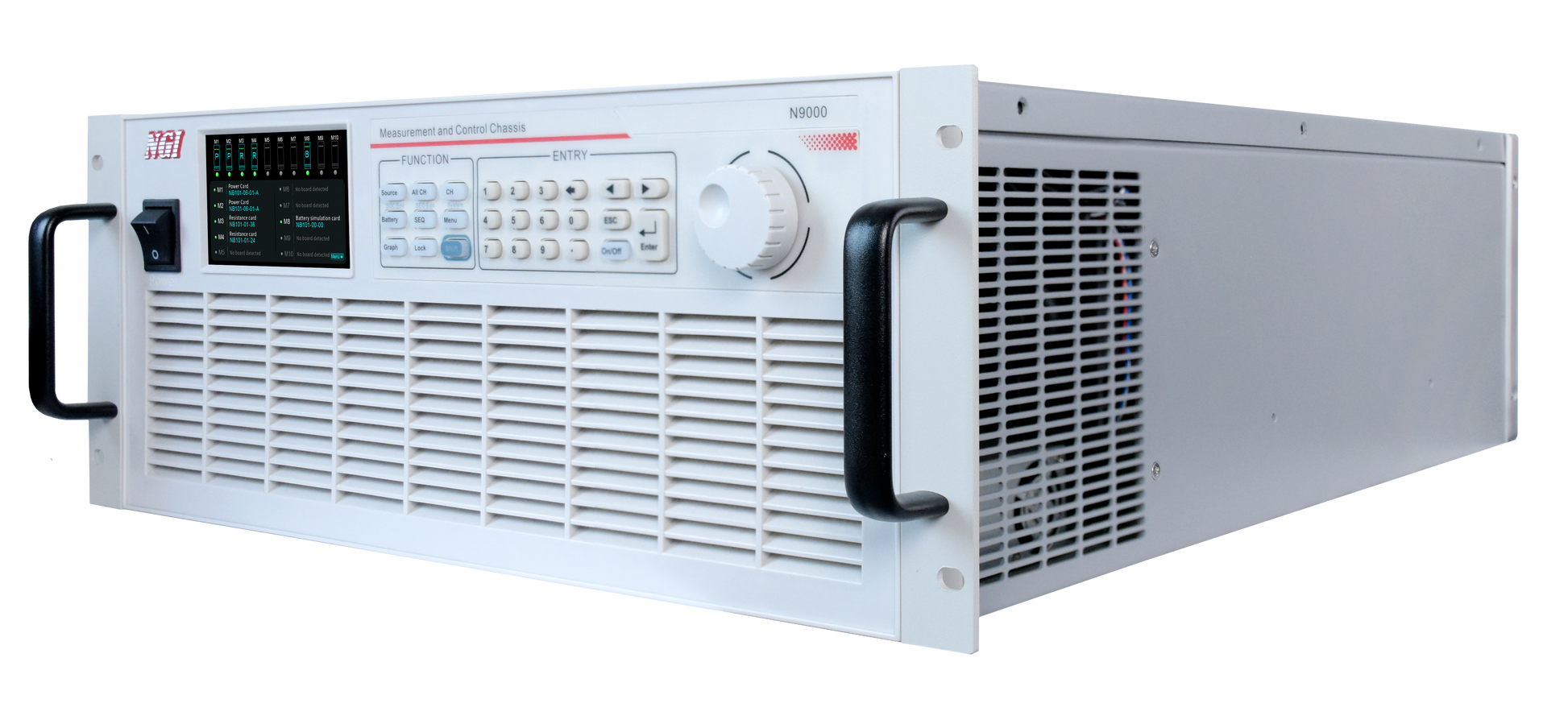

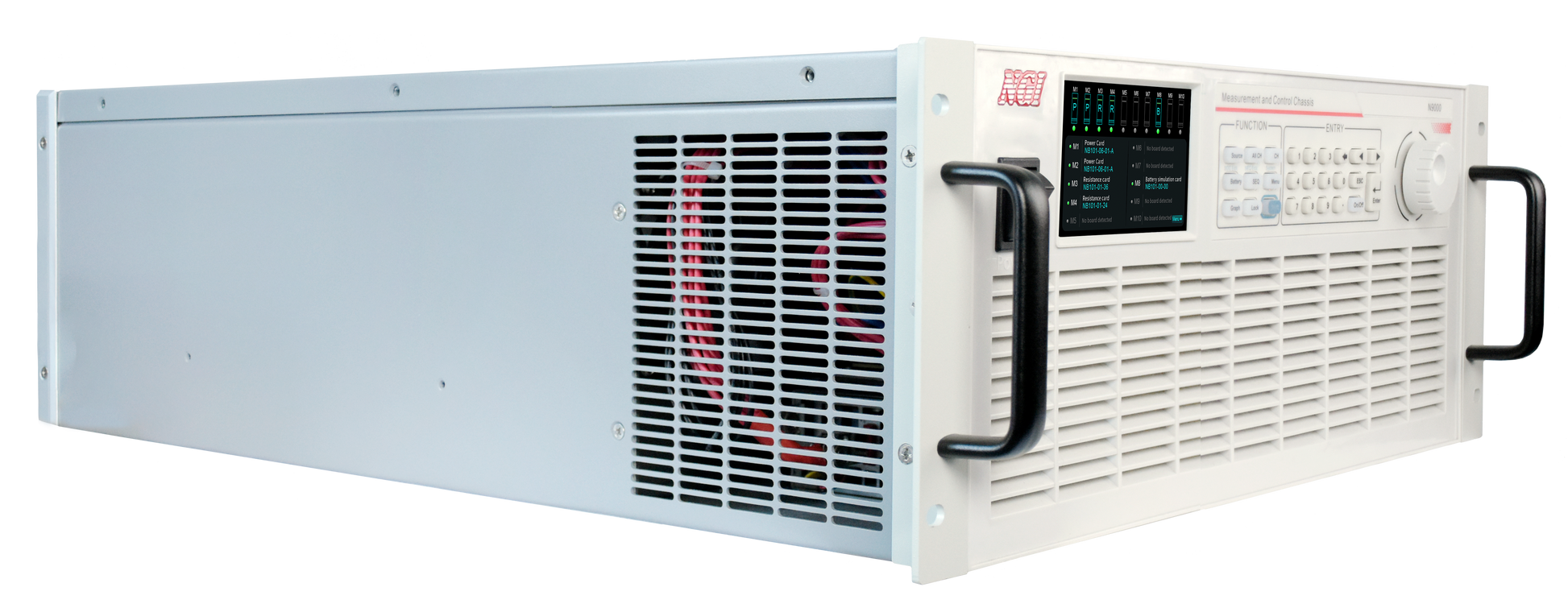

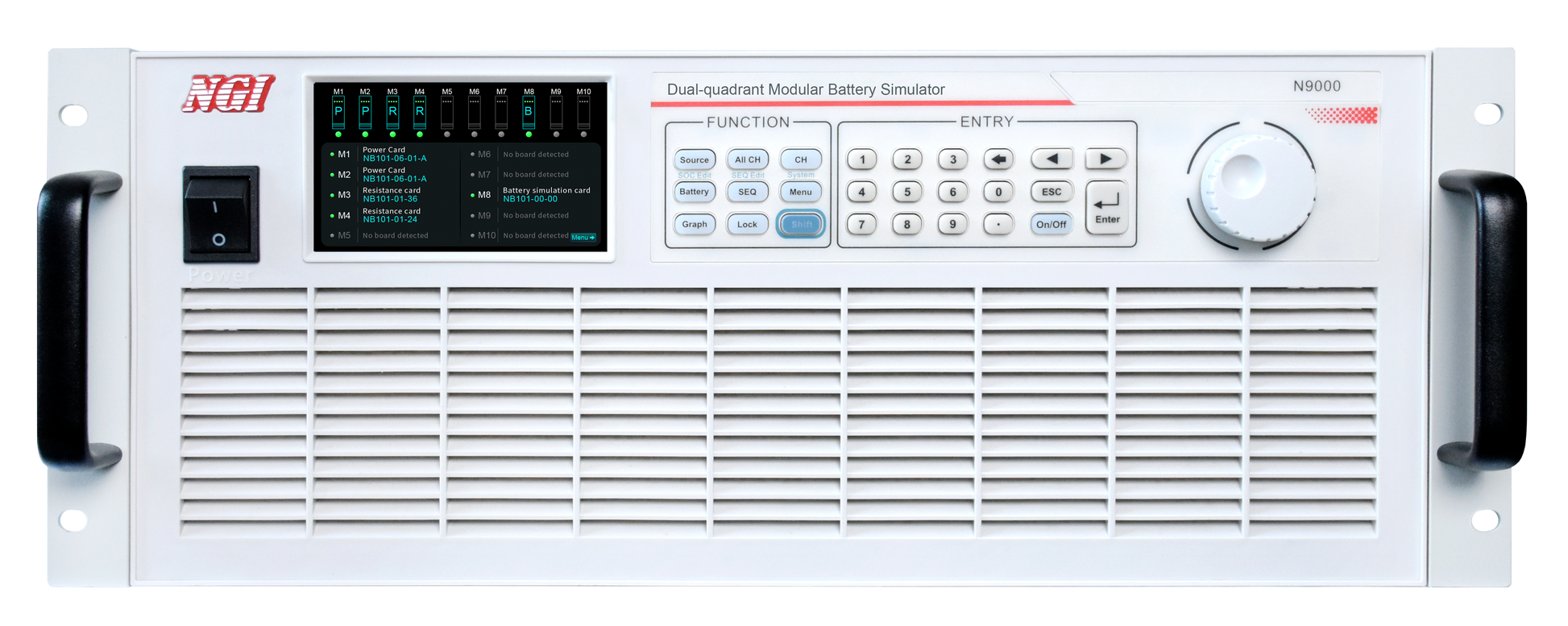

N9000 is an ultra-high integration dual-quadrant modular battery simulator with high real-time, high-synchronous, high-power consisting of N9000 measurement and control chassis and a variety of modules. N9000 is a standard chassis with 4U height and 19-inch width, support for the insertion of battery simulation modules, programmable resistance modules, high-voltage power supply modules and other types, the chassis can be integrated into 10 slot measurement and control modules, electrical isolation of the modules. N9000 series supports local/remote control and synchronous trigger function, which can realize multi-module high-speed synchronous control, and is widely applicable to multi-channel, high-integrity, high-power automated test and measurement scenarios.

The NB101 series is a high-precision, dual-quadrant programmable battery simulation module that supports voltage accuracy up to 0.1mV and μA-level current measurement. It is equipped with various test functions such as power mode, SOC simulation, sequence test, graph and fault simulation. It can meet the requirements of BMS HIL test system, AFE chip, energy storage, electric vehicle, electric two-wheeler, tricycle, base station power supply, and other multi-scenario BMS test applications.

NB102 series is a high-precision, multi-channel programmable resistance module, resistance range: 0Ω~11.11MΩ, programming accuracy up to 0.1%. The flexible design supports 12/24/36 channels with a resolution up to 1Ω, which can be widely used in simulation test scenarios such as NTC resistors and resistive sensors.

NB106 is a programmable high-voltage power supply module, the product has 1200V/2500V voltage output specifications, voltage accuracy is as high as 0.05%+0.05% F.S., supports CV, CC, SEQ, Sweep and other operating modes, and can be widely used in automotive BMS, energy storage BMS and other scenarios.

• Main Features
• High accuracy:voltage accuracy up to 0.1mV/0.5mV
• High integration: 32CH cell simulation+32CH fault simulation+36CH temperature simulation+total voltage simulation integrated in 19inch/4U chassis
• Modular design:easy for wiring and expansion
• High speed response:response time≤1ms
• Each channel isolated, series connection available
• μA level current measurement

• LAN port and CANFD interface; dual LAN ports, convenient for cascade application

Modular design for convenient operation and flexible expansion

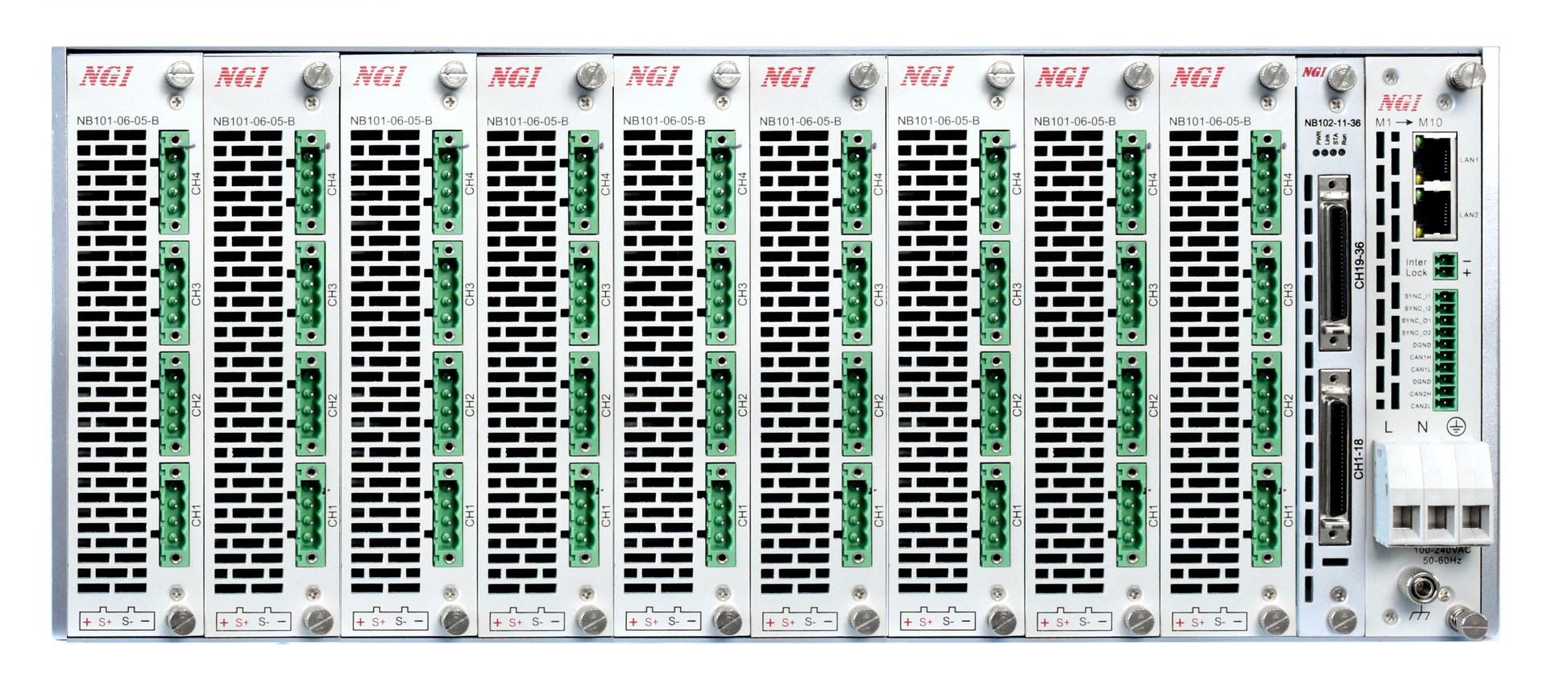

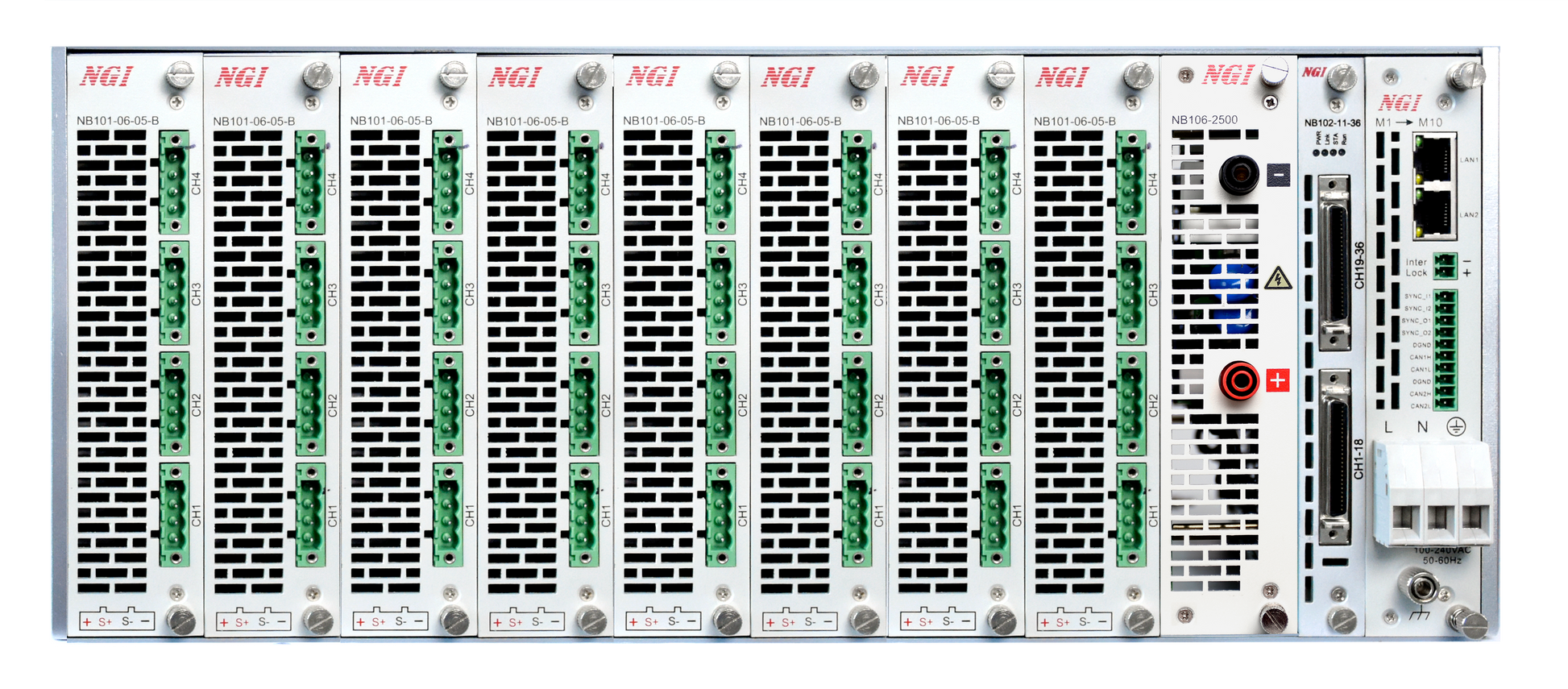

N9000 is an ultra-high integration dual-quadrant modular battery simulator. The standard chassis can integrate 32 channels of single cell simulation, 32 channels of battery fault simulation and 36 channels of temperature simulation and a channel total voltage simulation, which effectively saves users' space. Single module with 4 channels for battery simulation, single module with 12/24/36 channels optional for temperature simulation, high voltage power module 1200V/2500V selectable. With multiple models, users can choose products according to the actual needs, which is convenient for subsequent expansion.
