N83624 is a programmable battery simulator with low-power, multi-channel and high-accuracy, suitable for BMS/CMS test. It can also be used as a multi-channel high accuracy DC power supply. It is highly integrated, single device with up to 24 channels. Each channel is isolated, available for multi-channel series connection. N83624 is equipped with high-definition color LCD screen, available for local operation. Users can also set the voltage & current for each channel on application software, which is easy to use and can meet the needs of multi-channel and multi-data. The software can also provide graphs, data analysis and report function.
Application Fields
BMS/CMS test for new energy vehicle, UAV and energy storage
Portable consumer Electronics R&D and production, such as mobiles, bluetooth earphones, smartwatch, etc.
Calibration of voltage acquisition device, such as fuel cell voltage monitor
Main Features
Voltage Range: 0~6V/0~15V Current Range:0~1A/0~3A/0~5A
Voltage accuracy up to 0.6mV
Single device with up to 24 channels, each channel isolated, series connection available
Fast communication response , within 10ms for all channels programming response
Fast dynamic response, voltage rise time less than 20μs (For 6V specification)

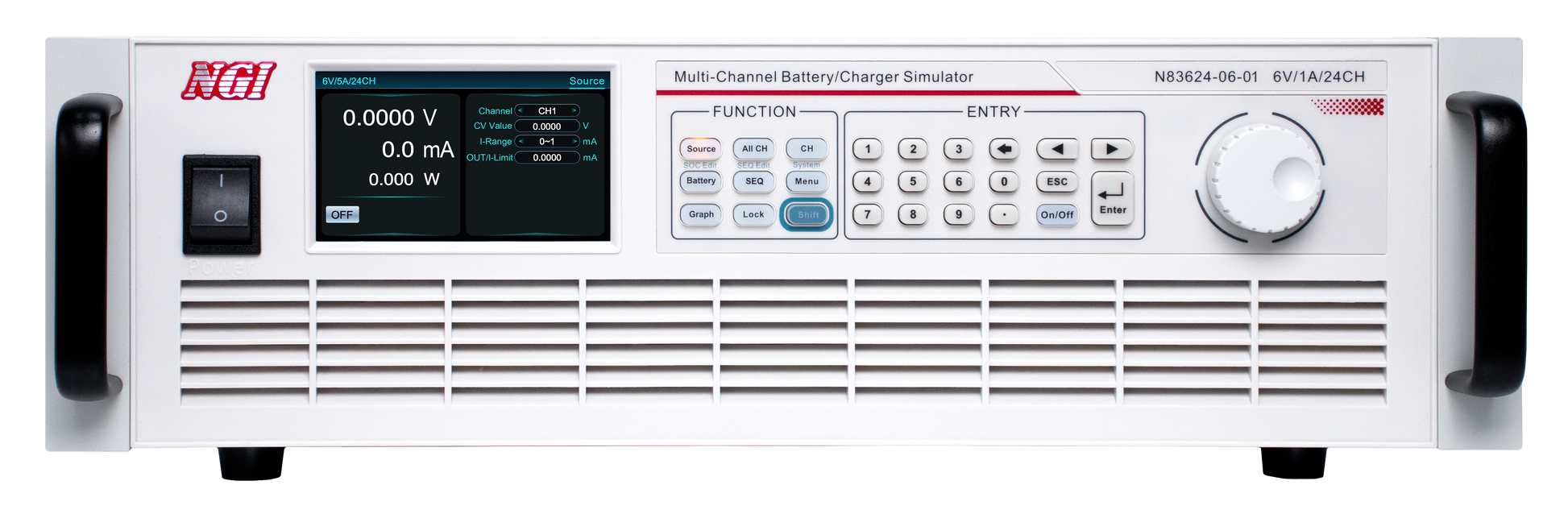

High-definition color LCD screen, available for local operation

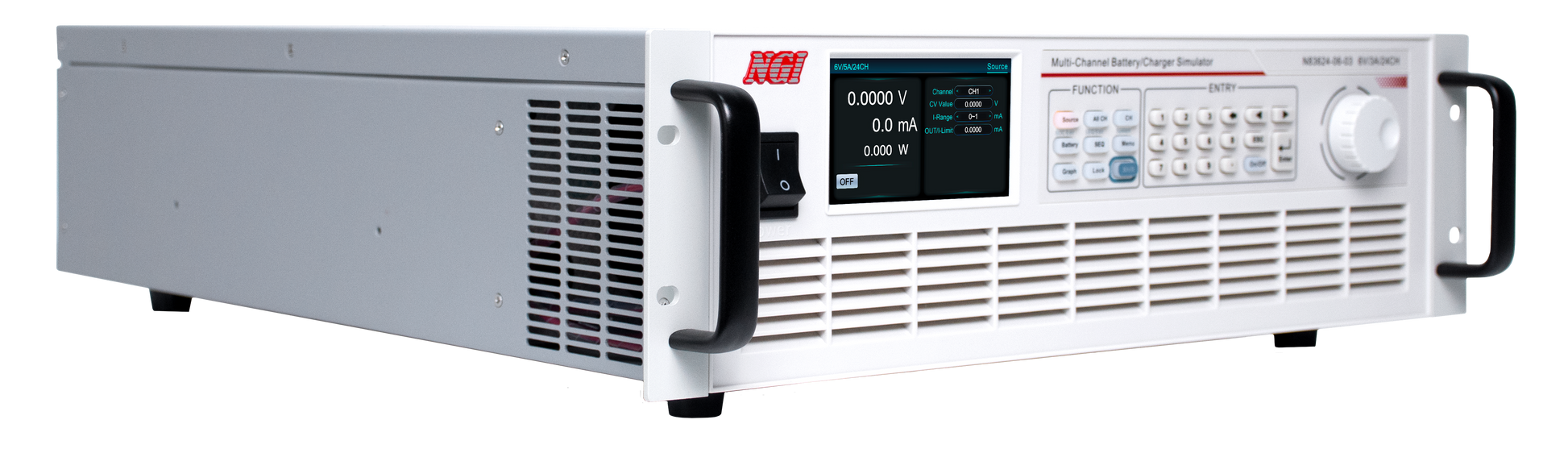

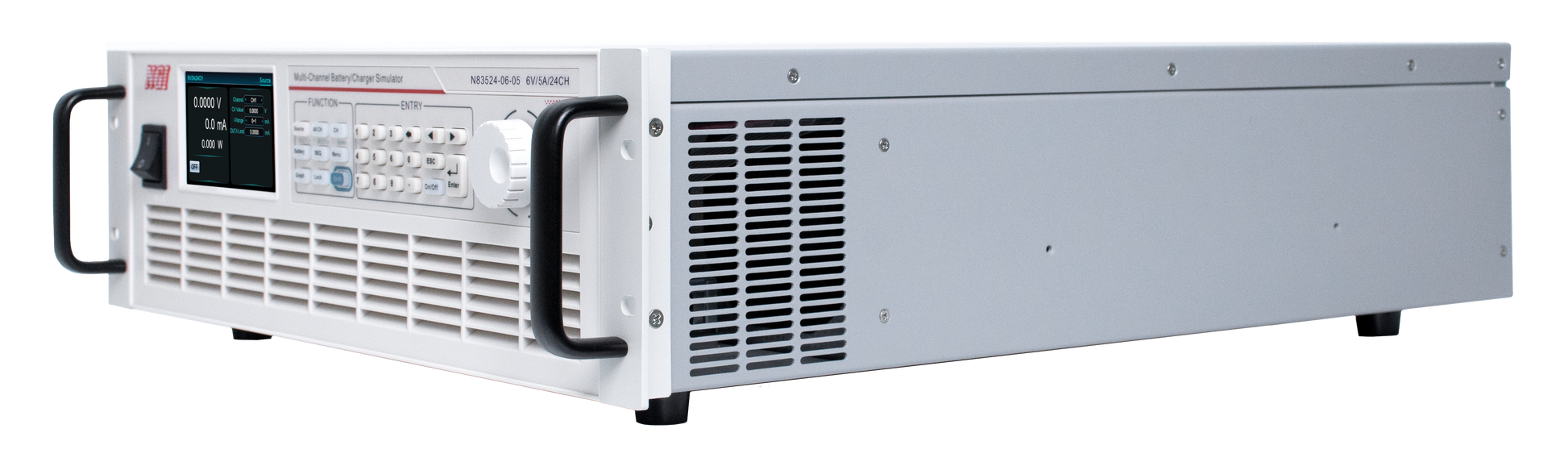

Standard 19-inch 3U, available for rack installation

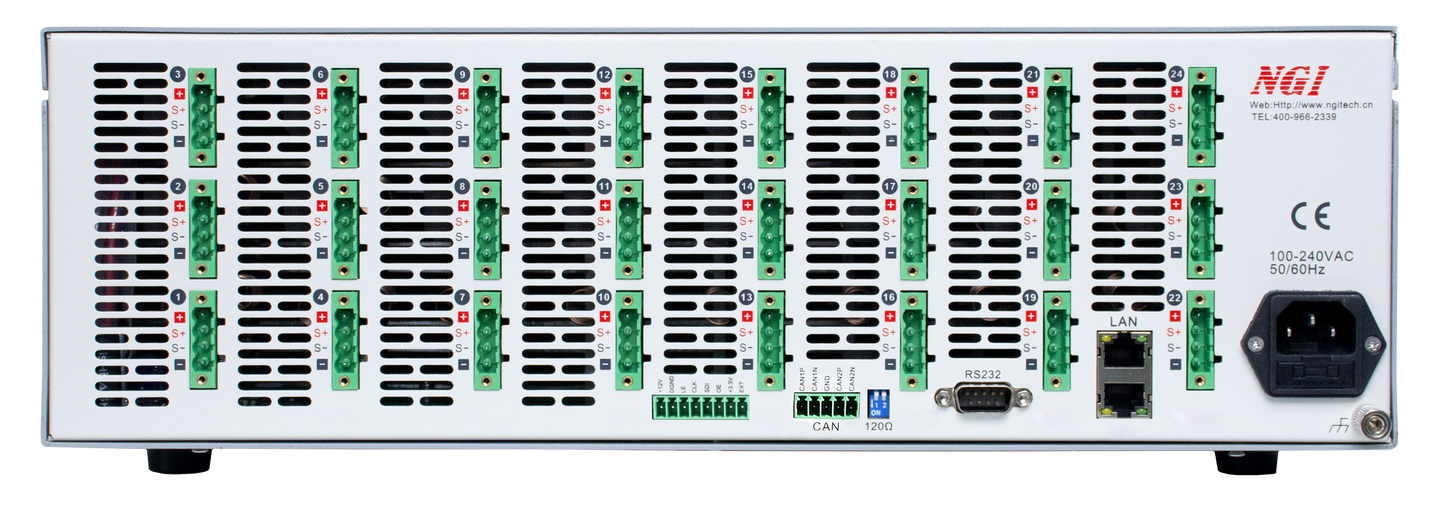

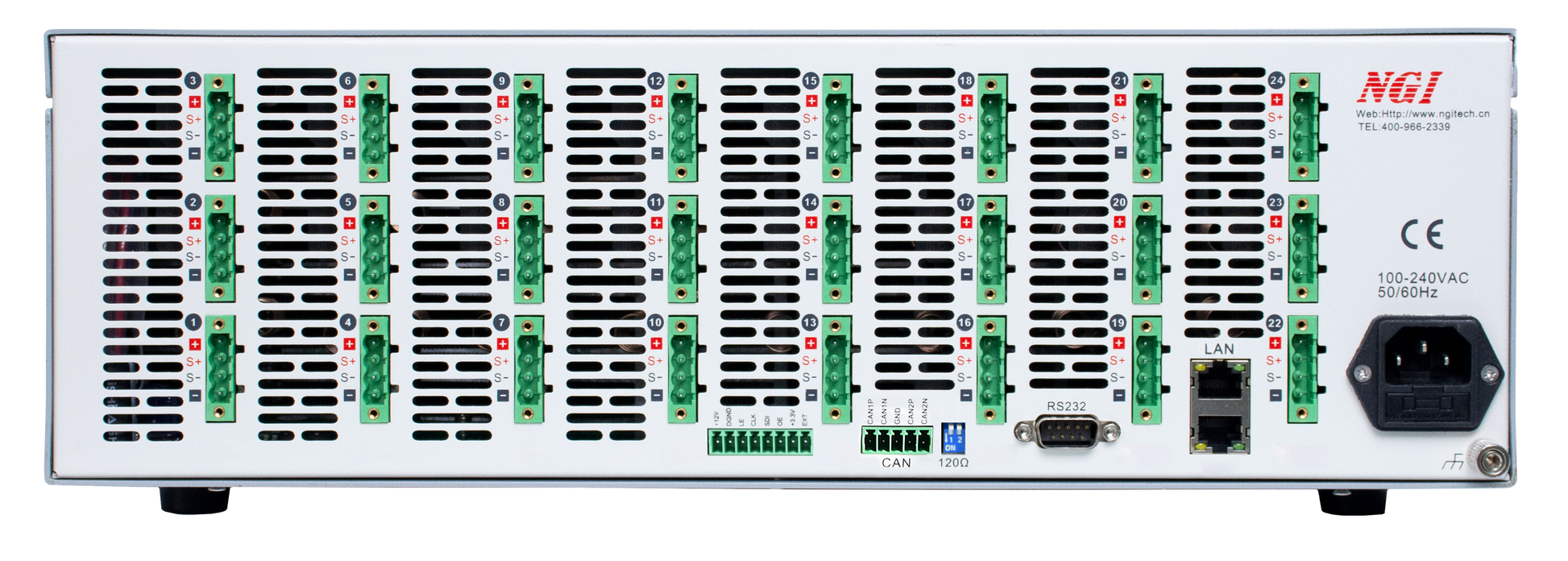

LAN port, RS232 interface, CAN interface; dual LAN ports, convenient for cascade application
μA level current measurement
Optional accessory: fault simulation module, nA level leakage current measurement module
