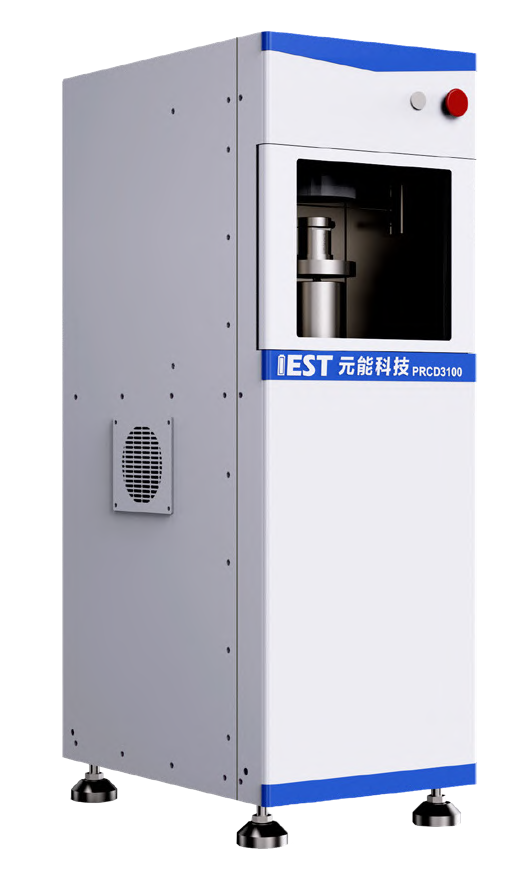

IEST Powder Resistivity & Compaction Density Measurement System (PRCD3100)

Introduction: Powder Compaction Density & Powder Resistivity Measurement System combined with high-precision pressure control, thickness and resistance testing system, free choice of four-probe and two-probe method. Accurately powder resistivity tests and compaction density measurements for materials R&D and for monitoring batch-to-batch stability of battery powder materials.

Features:

1. Ultra-wide pressurization range (maximum 350MPa) and ultra-wide resistance measurement range (200MΩ);
2. When measuring resistance, two-probe and four-probe dual principles can be switched freely;
3. Fully automatic test software, free parameter setting, one-click start;
4. Real-time monitoring and output of pressure, pressure, ambient temperature, ambient humidity, thickness, resistance, resistivity, conductivity, compaction density and other parameter curves, and automatic saving of test data.
5. Multiple powder test modes: pressurization, single-point pressure relief, steady-state pressure relief;
6. Equipped with standard thickness blocks and resistance blocks calibrated by a third-party metrology institute.

Application:

• Lithium (sodium) cathode and anode electrode powders (LCO/NCM/LFP/Graphite, etc.),
• Conductive agents
• Solid electrolyte powders
• Other micron-sized powder materials, etc.
