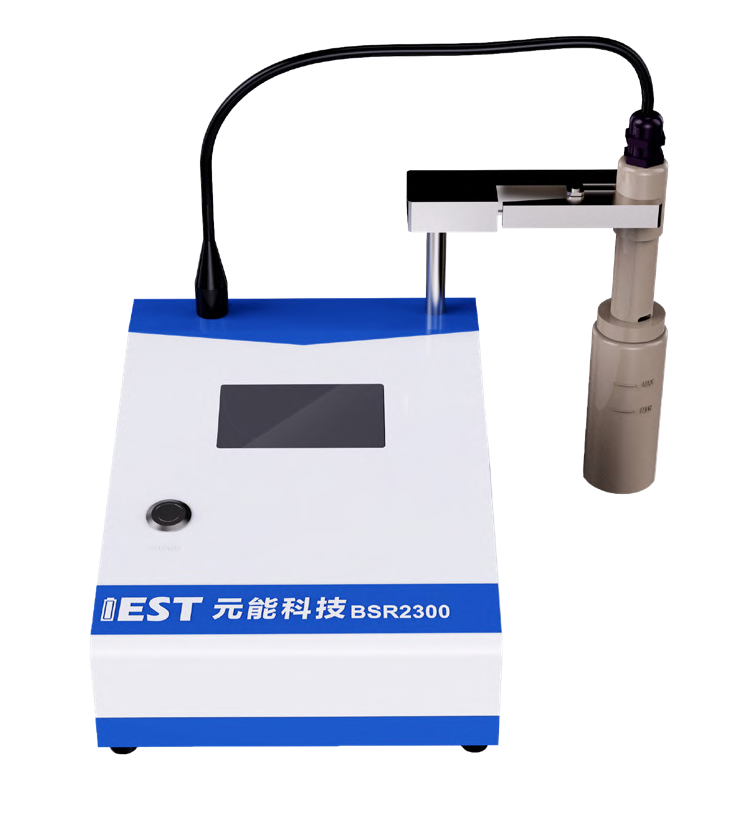

IEST Lithium Battery Slurry Resistivity Tester(BSR2300)

Lithium Battery Slurry Resistivity Tester (BSR2300） use the upper, middle and lower three pairs of electrodes to test the resistivity of the slurry at different vertical heights, evaluate the conductivity of different battery slurry formulations and the settlement performance with the standing time. Assist R&D in battery slurry formulation development and mixing process stability monitoring.

Features:

1. Applicable for conductivity evaluation and optimization of battery slurry formulation for Li/Na batteries and conductive additive slurries.
2. Independent voltage/current paths eliminate induction interference on voltage measurements, enhancing resistivity detection accuracy.
3. 10-mm diameter disk electrodes ensure maximum sample contact area, minimizing measurement errors.
4. Triple-electrode configuration measures slurry resistivity while simultaneously evaluating sedimentation behavior.
5. Real-time monitoring of resistivity changes at three vertically distributed positions tracks time-dependent slurry homogeneity.

Application:

• Li/Na battery cathode and anode electrode slurries
• Conductive agent slurries material evaluation
• Process stability evaluation
• Process pevelopment
• Slurry stability analysis
• Battery slurry formula evaluation
• Slurry sedimentation performance evaluation
