IEST In-Situ Model Coin Cell Swelling Testing System(MCS1000)

The Model Coin-Cell In-Situ Swelling Testing System using high-precision displacement sensors and high-stability structural systems, the swelling thickness change curve of the model coin-cell battery is tested in-situ, the swelling performance of the active material is quickly analyzed, and material development is facilitated.

Features:

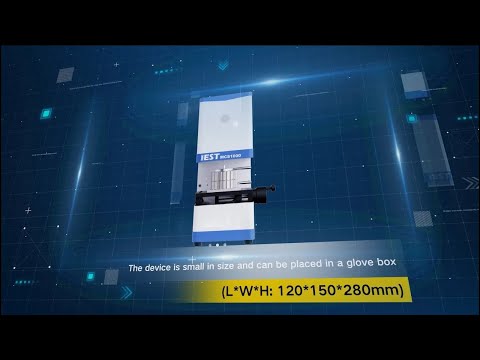

1. The instrument size is small (length *width * height: 120 * 150 * 280mm), which can be placed in the glove box;
2. The model coin cell can be used to assemble various types of full coin cell;
3. Good tightness can ensure long-term test stability and obtain more reliable test results;
4. High-precision thickness measurement system, thickness measurement resolution 0.1um, precision ±1 um.
5. In-situ test of the full-cell swelling thickness curve;
6. lon conductivity of the solid electrolyte can be measured;
7. The software can automatically combine the thickness change of the model coin cell with thecharging and discharge data (compatible with partial charging and discharge tester), and outputthe report involving all testing data.

Applications:

• Li-Li symmetric cell
• NCM-Graphite full cell
• NCM-Si/C full cell
• All-solid-state battery
