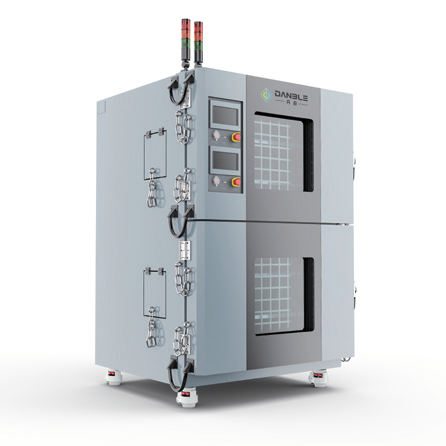

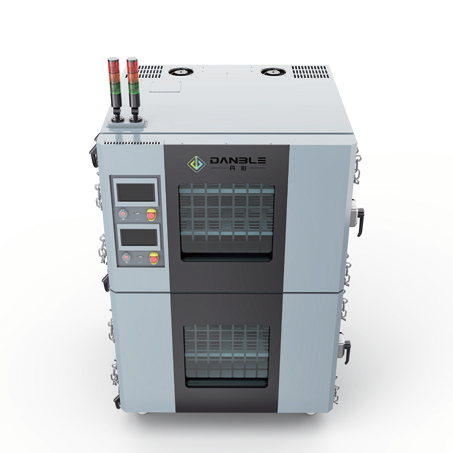

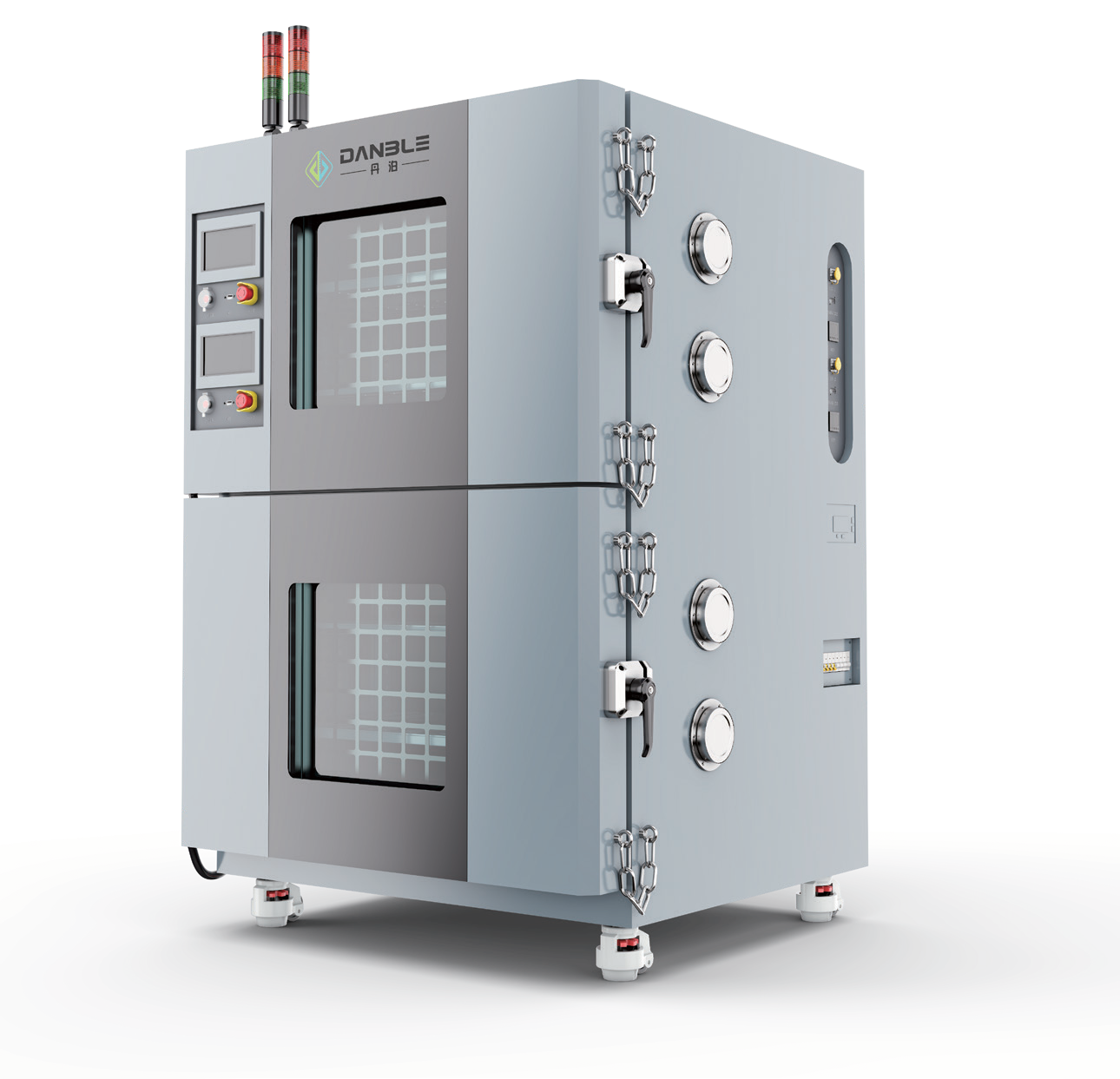

DANBLE Thermoelectric (Peltier-cooled) Test Chamber

Thermoelectric or Peltier-cooled Test Chamber is a high-precision environmental enclosure that uses solid-state technology rather than traditional mechanical refrigeration (compressors) to control temperature.

Instead of circulating chemical refrigerants, these chambers utilize Peltier modules—semiconductor devices that transfer heat from one side of the device to the other when electrical current is applied.

How It Works: The Peltier Effect

• Heating/Cooling: When DC current flows through the semiconductor pellets, one side becomes cold (absorbing heat) while the opposite side becomes hot (releasing heat).
• Reversibility: By simply reversing the polarity of the current, the chamber can switch from cooling to heating almost instantly.

Key Advantages

• Extreme Stability & Precision: Because they don't rely on the "on/off" cycling of a compressor, these chambers can maintain temperature with incredible accuracy, often within ±0.1°C.
• Low Vibration & Noise: With no moving parts other than small circulation fans, they are ideal for testing sensitive electronics, sensors, or laboratory samples where mechanical vibration could interfere with results.
• Eco-Friendly: They are completely refrigerant-free (no GWP/ODP gases) and generally more energy-efficient when operating near ambient temperatures.
• Compact Footprint: The lack of a bulky compressor and condenser allows for benchtop designs that maximize internal space.

Common Applications

• Sensor Calibration: Testing ADAS sensors or high-precision MEMS where vibration-free environments are mandatory.
• Semiconductor Burn-in: Testing microchips and wafers at specific thermal setpoints to identify early-life failures.
• Life Sciences: Incubating biological samples or stability testing for pharmaceuticals.
• Fiber Optics: Testing laser diodes and optical components that are sensitive to thermal fluctuations.

Limitations to Consider

While highly precise, semiconductor-based chambers typically have a narrower temperature range (rarely going below 0°C) and lower "cooling capacity" compared to industrial compressor systems. They are best suited for steady-state testing rather than high-mass thermal shock.
